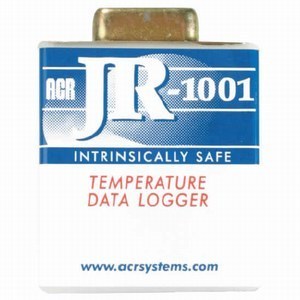

ACR JR-1001 Series Intrinsically Safe Temperature Data Logger

JR-1001,Series,Intrinsically,Safe,Temperature,Data,Logger,ACR,SystemsThe ACR JR-1001 data logger is an Intrinsically Safe, simple and easy-to-use single- channel data logger. It is ideal for quick and accurate temperature recordings in a variety of applications.










Specifications

Sampling Interval
User selectable from 8 seconds to 34 minutes
Sampling Method
Continuous, Stop when Full
Logger Resolution
0.4°C @ 25°C (0.7°F @ 77°F)
Memory Size
32 KB (up to 244,800 readings when data compression selected)
Temperature Sensor Type
NTC Thermistor 10,000 ohms @ 25°C (77°F)
Temperature Sensor Range:
-40 to 85°C (-40 to 185°F)
Temperature Sensor Accuracy
+/- 0.2°C @ 25°C (+/- 0.3°F @ 77°F)
Approval
UL Intrinsically Safe for use in:
Class 1, Division 1, Groups A, B, C, D
Class 2, Division 1, Groups E, F, G
Class 3, Division 1, Hazardous Locations T3C

Ordering Information

Model Description Catalog #
JR-1001 Single channel temperature data logger 01-0193
