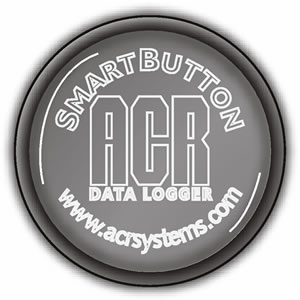

ACR SmartButton Button-Sized Temperature Data Logger

SmartButton,Button,Sized,Temperature,Data,Logger,ACR,SystemsThe ACR SmartButton is a miniature-sized temperature logger that is extremely low-cost and easy to use. Because of its small size and low cost, you can purchase tens or hundreds of them for multiple-site temperature monitoring. To get you started, purchase the SmartButton Starter Pack. It includes one SmartButton, an interface cable, SmartButton Reader software and a mini manual. So simple and easy to use, anyone can start data logging today!

Specifications

Type
 Temperature
Size
 17 mm diameter x 6 mm height
Weight
 4 g
Battery
 3.0 volt Lithium
Resolution
 8 bits - 0.5°C (0.9°F)
Mounting
 User selectable
Clock Accuracy
 +/- 2 minutes per month from 0 to 45°C (32 to 113°F)
Sampling Methods
 Continuous (First-in, First-out), Stop when full
PC Requirements
 IBM PC or 100% compatible Pentium 75 (minimum) with at least one free serial or USB port, depending on interface.
Software Requirements
 SmartButton Reader™ (compatible with Windows® 95, 98, NT, 2000, XP and Vista)
Communication
 RS232 Serial/ACR SmartButton® interface or USB/ACR SmartButton® interface

Ordering Information

Model
Catalog #
SmartButton (Single)
01-0180
SmartButton Starter Pack (USB)
01-0182
SmartButton Starter Pack (Serial)
01-0181
SmartButton Interface Cable (USB)
01-0183
SmartButton Interface Cable (Serial)
01-0053
SmartButton Reader Software - Full Install
34-0010
